System Characteristics | Universal Aluminium Roof Hooks

The Universal Choice for Roof Tiles

The ATP Solar Mountings aluminum roof hooks are designed as universal roof hooks for all roof tiles and concrete roof tiles. For maximum flexibility, all aluminum roof hooks are multi-adjustable and can therefore be adapted to the conditions of the roof structure, such as the size of the roof battens.

Roof hooks with lateral connection of mounting rails are specially designed for mounting solar modules in a horizontal orientation.

Two-layer Assembly with Cross Bracing

If the structural requirements do not permit a regular installation of the photovoltaic system, for example due to high load requirements caused by snow loads, the nature of the roof substructure or the position of the photovoltaic modules, a cross bracing with a second rail layer can be used.

The cross brace can be set up with all aluminium roof hooks, irresepctive of the module layout.

The necessary cross connectors supplied pre-assembled and can be screwed into the groove of the mounting rails. The cross connector is compatible with all mounting rails.

Sizes of Aluminium Roof Hooks

Suitable for every roof batten

The aluminum roof hooks are available with three base plate heights to suit all roof batten sizes and roof tiles or roof tiles.



Compatible with Replacement Tiles

We have a wide range of replacement tiles for all common clay and concrete roof tiles. Of course, our universal aluminum roof hooks are compatible with the replacement tiles.

We recommend the use of replacement tiles!



Installation of PV system with universal roof hooks

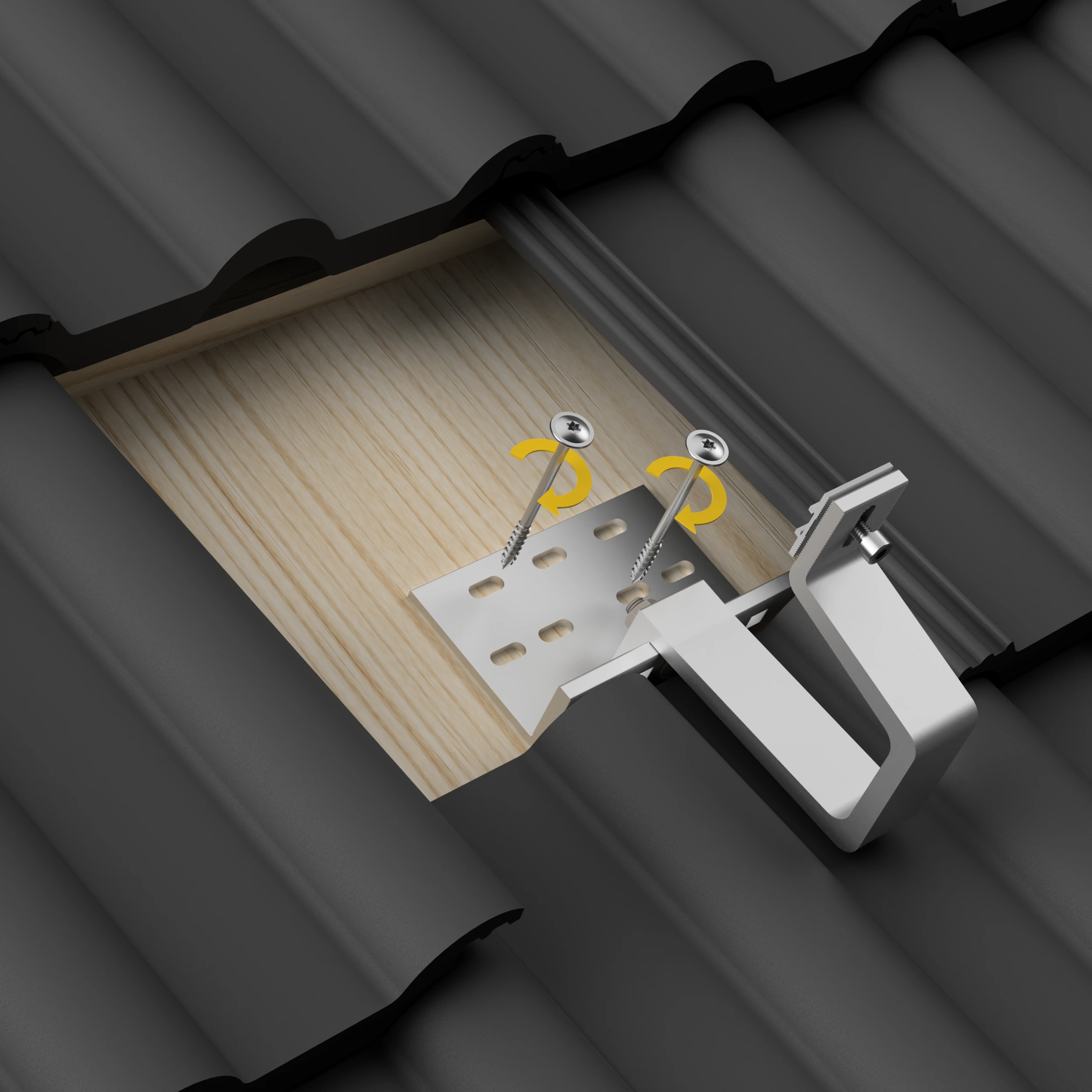

Attach the roof hook with two self-tapping wood construction screws. Note that the distance between the screw and the edge of the rafter must be four times the screw diameter.

Adjust the roof hook position.

It may be necessary to notch the upper or lower roof tile to ensure that the roof tile seals properly and lies firmly on the roof.

Attach the mounting rail with the pre-assembled quick connector.

The screw channel is designed for a tightening torque of 15 Nm.

Universelle Aludachhaken mit vorderer Anbindung der Mounting Rail.
Universelle Aludachhaken mit seitlicher Anbindung der Modultragschiene.

Aluminum Roof Hook with Front Connection of the Mounting Rail

Aluminum Roof Hook with Side Connection of the Mounting Rail

System Components

Ideal installation of photovoltaic systems on roofs with roof tiles and concrete roof tiles!

Aluminium roof hooks for fast installation

With pre-assembled clamping plate and cylinder head screw for front profile connection

Aluminium Roof Hook with Side Connection
Mounting Rails

Choose between our light, medium or heavy mounting rail. Available in five different lengths.

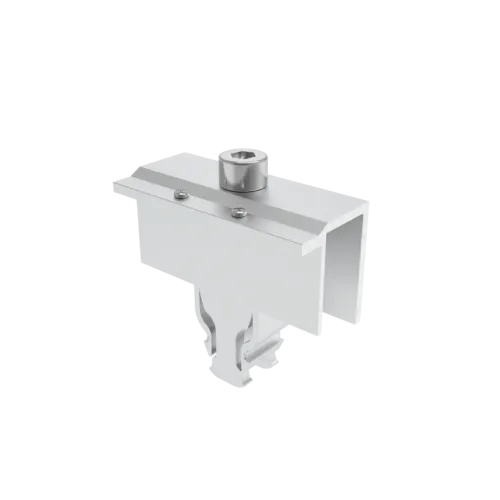

Module Clamps – Middle- and Endclamps
Optional Components

Rail connectors, cross connectors, end caps and grounding clamps complete the substructure.

Assembly Systematics

The assembly of the ATP Solar Mountings solar mounting system is always done in three simple steps!

We have placed value on a simple, fast, and convenient installation in the development of our solar mounting system. Therefore, the assembly methodology of the ATP Solar Mountings solar mounting system always follows the same simple logic.

Installing the roof attachments

Attaching the Mounting Rails

Installing the PV-Modules

Whenever possible, the components are pre-assembled.

Assembly Instructions

Please consider all important information and safety instructions when installing your PV substructure.

Planning the PV Substructure

What mounting material is required for the installation of your PV system? With our calculator, planning photovoltaic systems is easy and straightforward!
