Stainless Steel Roof Hooks | System Characteristics

Universal stainless steel roof hooks for the efficient installation of photovoltaic systems on tiled roofs.

We offer an extensive range of universal stainless steel roof hooks for all common roof tiles such as clay tiles, pantiles, and concrete roof tiles. The roof hooks are made of high-quality stainless steel and can be used with or without a replacement roof tile. No roof is the same! Therefore, the rail height can be adjusted on all stainless steel roof hooks. We are happy to assist you with the individual planning of your PV substructure!”

Universal Stainless Steel Roof Hooks

Universally usable on pitched roofs with clay roof tiles and pantiles

Pantile Roof Hook AOE

The roof hook for pantiles AOE compensates for height differences on the roof of up to 22 mm, and the position of the rail can be adjusted lengthwise by up to 31 mm. Battens up to 40 mm can be bridged.

Pantile Roof Hook AV

The roof hook for pantiles AV compensates for height differences on the roof of up to 30 mm. Battens up to 40 mm can be bridged.

Stainless Steel Roof Hook 565 2V+ and 565 2V

Double height adjustable, three-stage side adjustable

Version 565 2V+ with pre-assembled cross connector; Version 565 2V without cross connector for mounting the DF mounting rail using a hammerhead screw

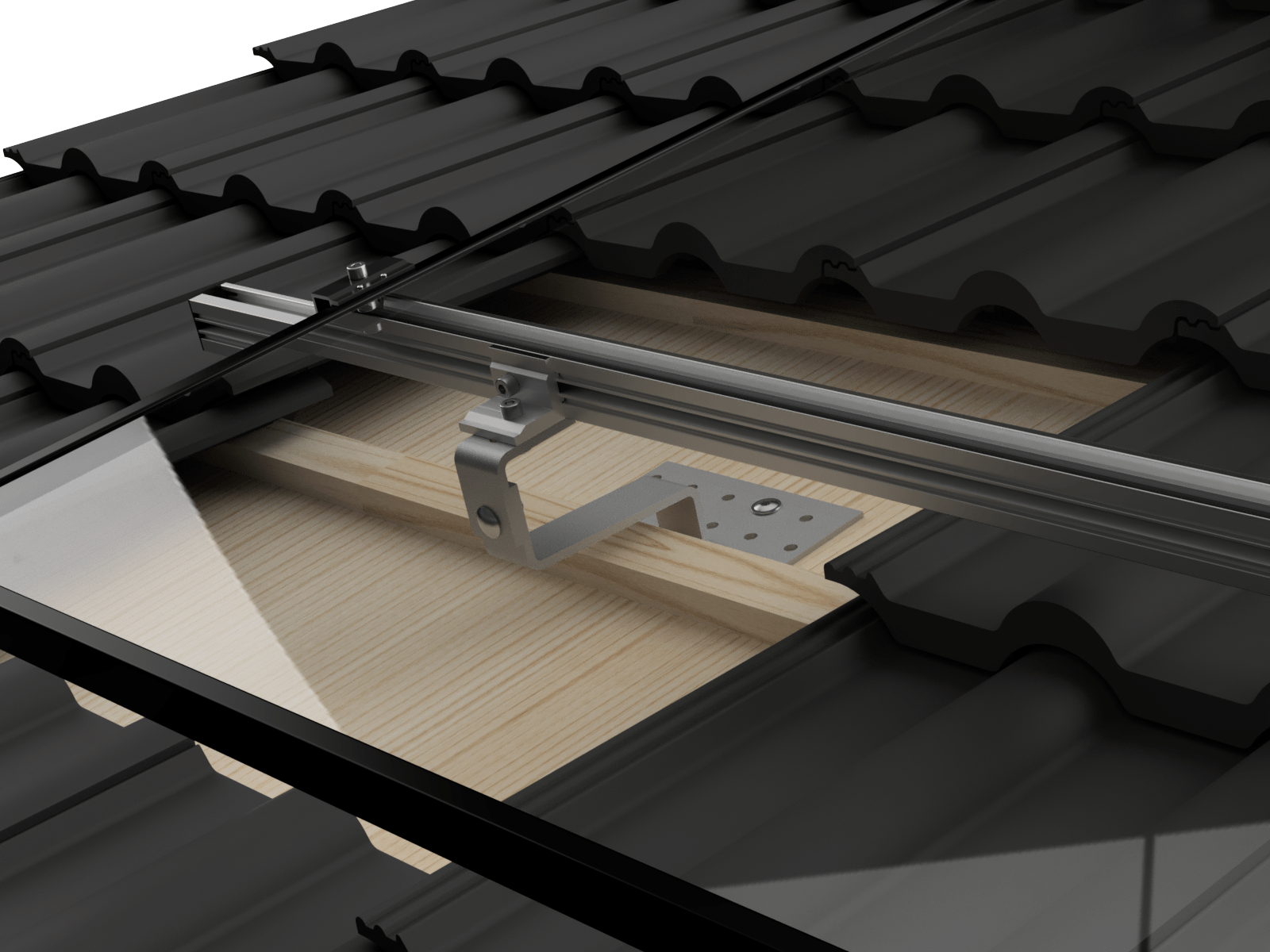

  • Dieses Bild zeigt einen dreifach einstellbaren universellen Edelstahldachhaken für die Monatge von Photovoltaiksystemen auf verschiedenen Hausdächern.

Simple Installation

For easy access, mounting rails and stainless steel roof hooks are always attached from the front for easy access.

The further structure of our photovoltaic mounting system is always universal – only the mounting rails with integrated screw channel and module clamps for clicking in are required!

Flexibility

All tile roof, beaver tail, or slate roof hooks provide height adjustment for the mounting rail. All stainless steel roof hooks that have a pre-assembled cross connector are suitable for vertical and horizontal module alignment.

We can handle special configurations upon request.

Components – Stainless Steel Roof Hooks

Wafer-Head Wood Screw 8×100 A2
Hexagonal Socket Head Screw M8x20
End Cap MR Medium
Plain Tile Roof Hook AO
End Clamp 35
Middle Clamp
Mounting Rail Medium 5500

Assembly Systematics

The assembly of the ATP Solar Mountings solar mounting system is always done in three simple steps!

We have placed value on a simple, fast, and convenient installation in the development of our solar mounting system. Therefore, the assembly methodology of the ATP Solar Mountings solar mounting system always follows the same simple logic.

Installing the roof attachments

Attaching the Mounting Rails

Installing the PV-Modules

Whenever possible, the components are pre-assembled.

Assembly Instructions

Please consider all important information and safety instructions when installing your PV substructure.

Planning the PV Substructure

What mounting material is required for the installation of your PV system? With our calculator, planning photovoltaic systems is easy and straightforward!
