Pantile Roof Hook AOE
SDHS1304
Produktbeschreibung

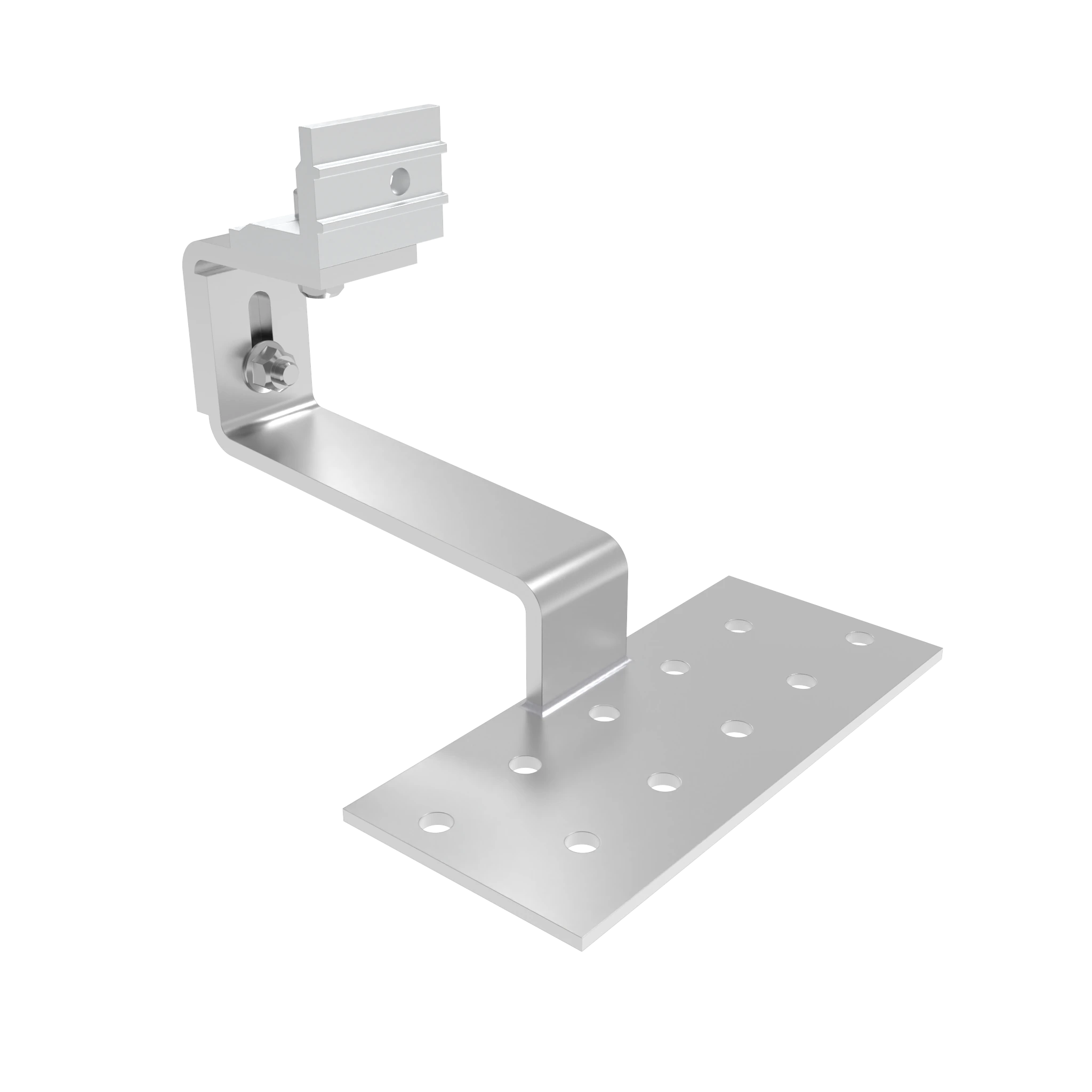

Universal stainless steel roof hook for common pantiles with pre-assembled connector. Low material-profile for better fit between roof tiles, large base plate expands possible mounting area.
Technische Angaben
Montagesystem Pitched Roof, Pantile Roofing
Material Stainless Steel, ALU EN 6063
OberflächeSandblasted
Anpassbaryes
Verkaufseinheit1
Dimensionen

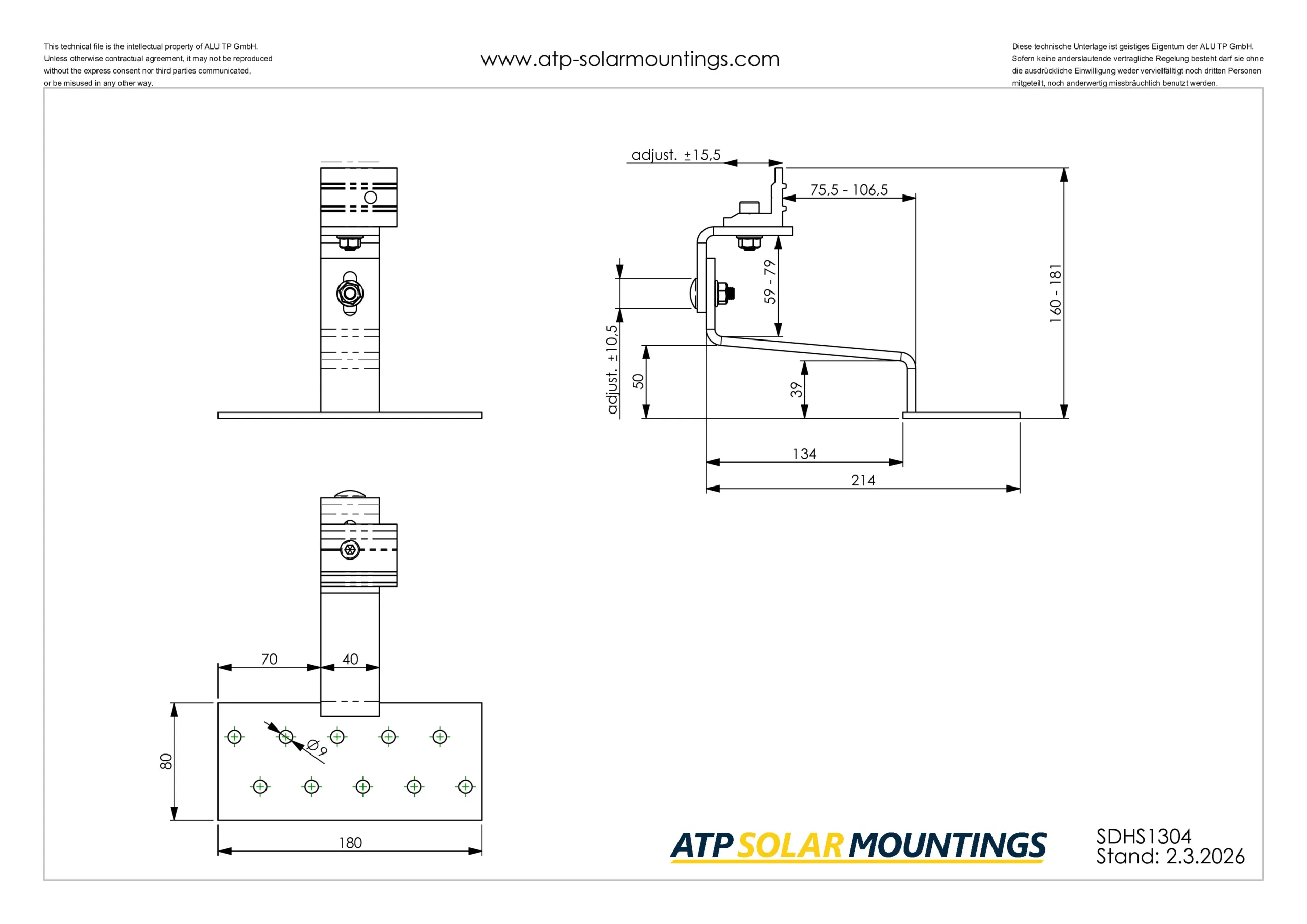

Base Plate: 180 x 80 x 4 mm | Total Height: 160 – 181 mm | Height under Bracket: 40 mm | Bracket: 40 x 6 mm | Bracket Height: 120 – 142 mm | Bracket Length: 140 mm
EigenschaftenPre-assembled with cross connector for front or side installation of mounting rails. 20 mm height adjustment of mounting rail; 30 mm lenght-wise adjustment of mounting rail
