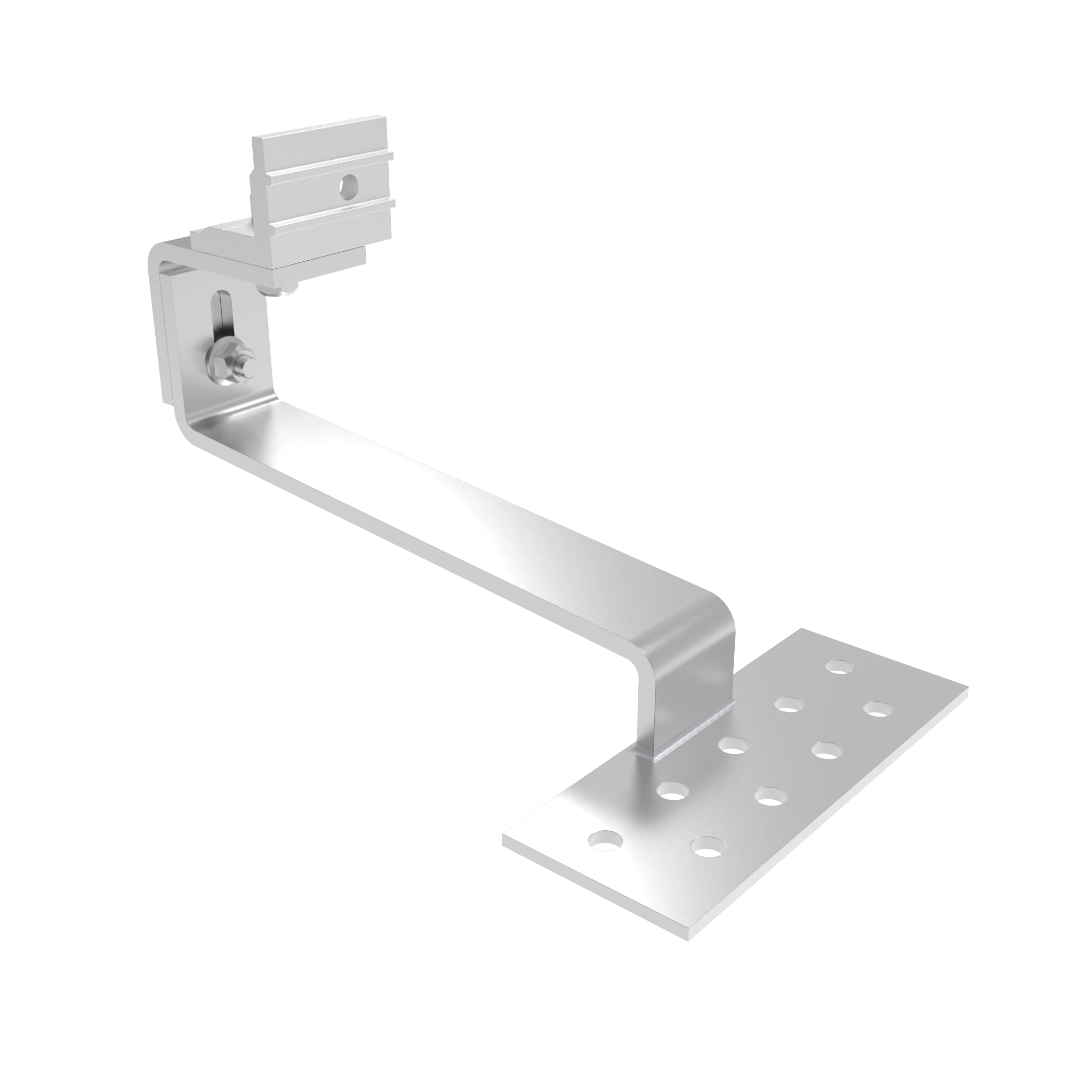

Plain Tile Roof Hook AOE
SDHS1301
Produktbeschreibung
Technische Angaben
Montagesystem Pitched Roof, Plain Tile Roofing
Material Stainless Steel, ALU EN 6063
OberflächeSandblasted
Anpassbaryes
Verkaufseinheit1
Dimensionen

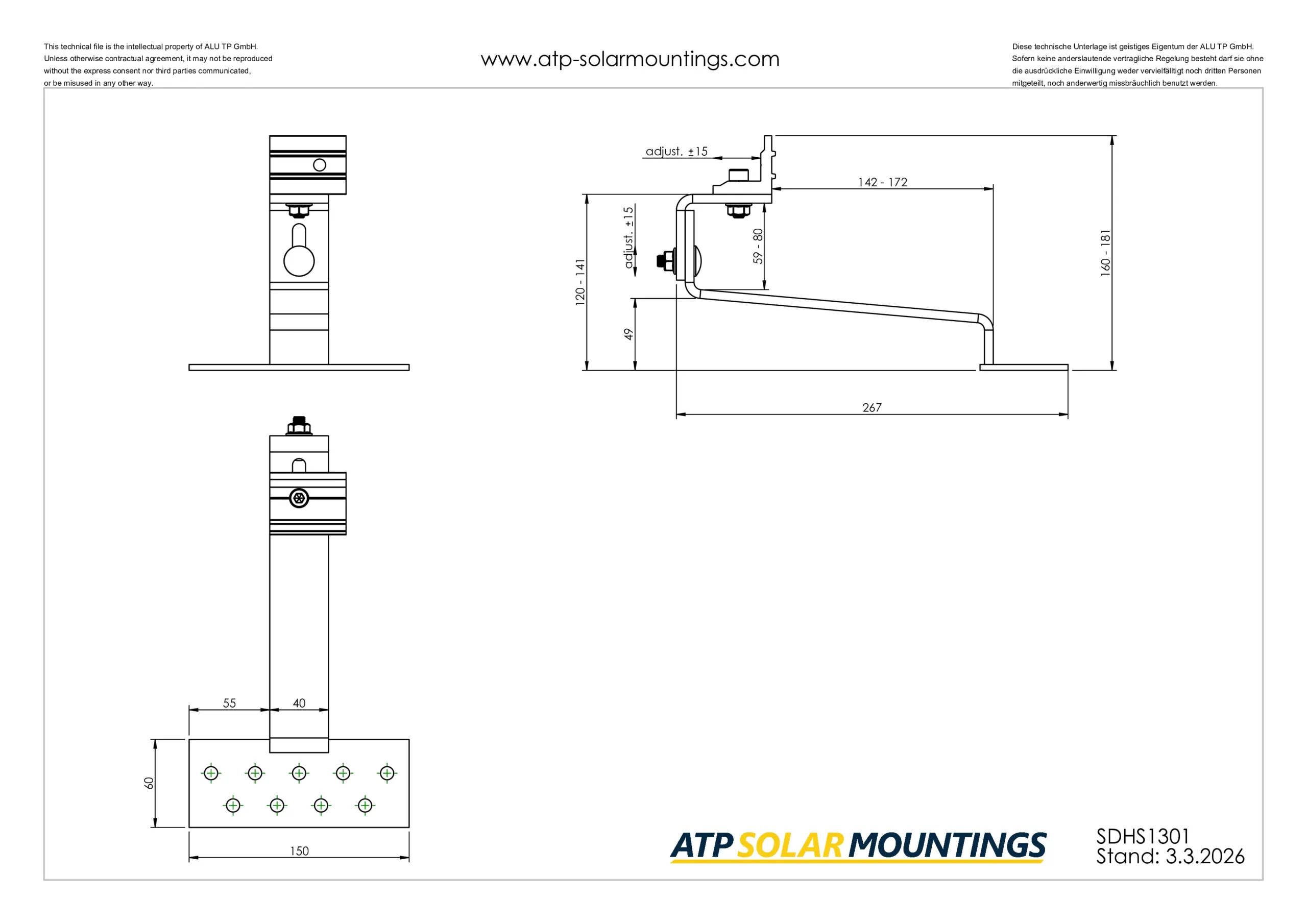

Base Plate: 150x60x4 mm Total Height: 160 - 181 mm Height under Bracket: 32,5 mm Bracket: 40x6 mm Bracket Height: 127,5 - 148,5 mm Bracket Length: 207 mm
EigenschaftenStainless steel roof hook for plain tile roofing, pre-assembled with Cross Connector for front and side installation, height adjustment through slotted hole approx. 20 mm, length adjustment approx. 31 mm.
