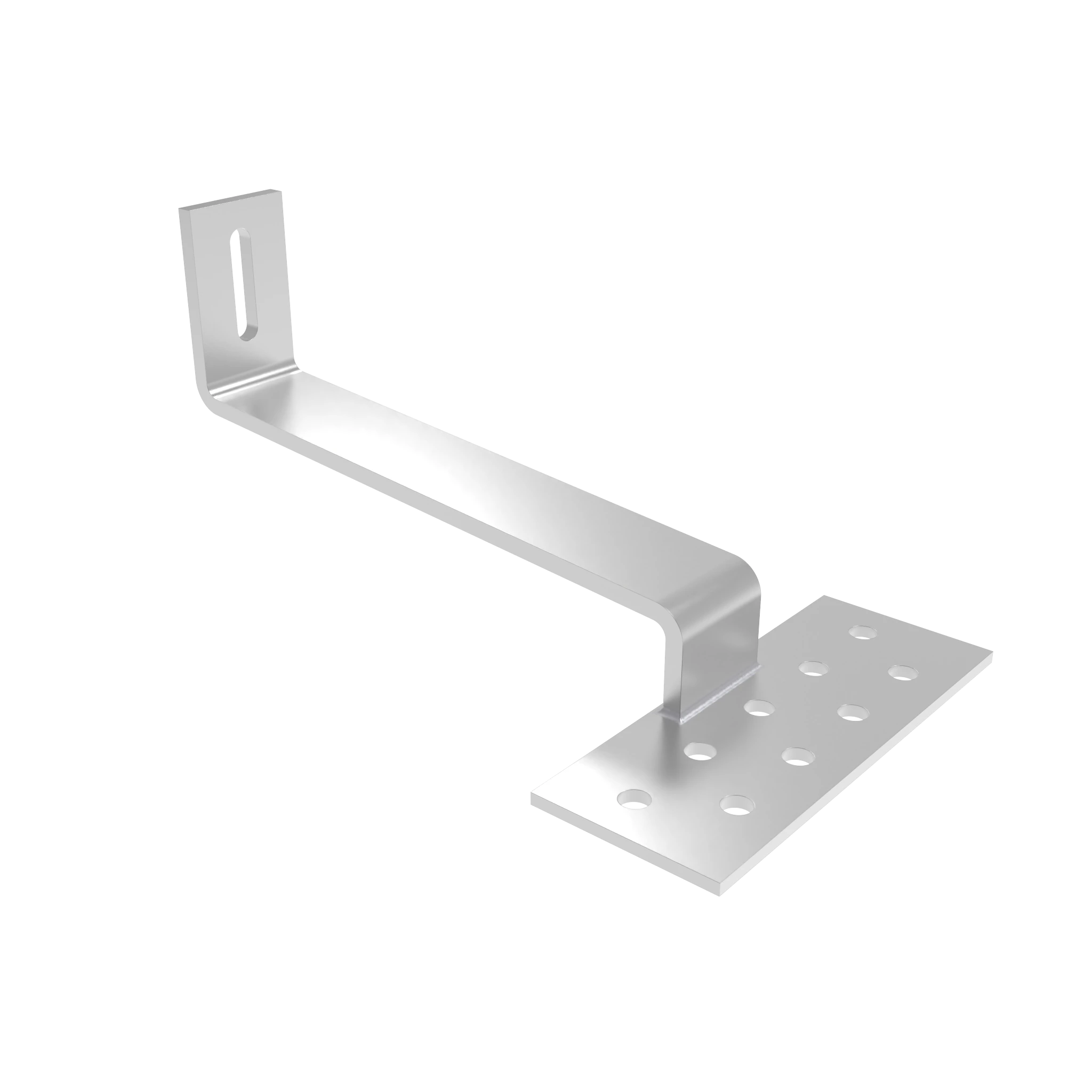

Plain Tile Roof Hook AV
SDHS1401
Produktbeschreibung
Technische Angaben
Montagesystem Pitched Roof, Plain Tile Roofing
Material Stainless Steel
OberflächeSandblasted
Anpassbarno
Verkaufseinheit1
Dimensionen

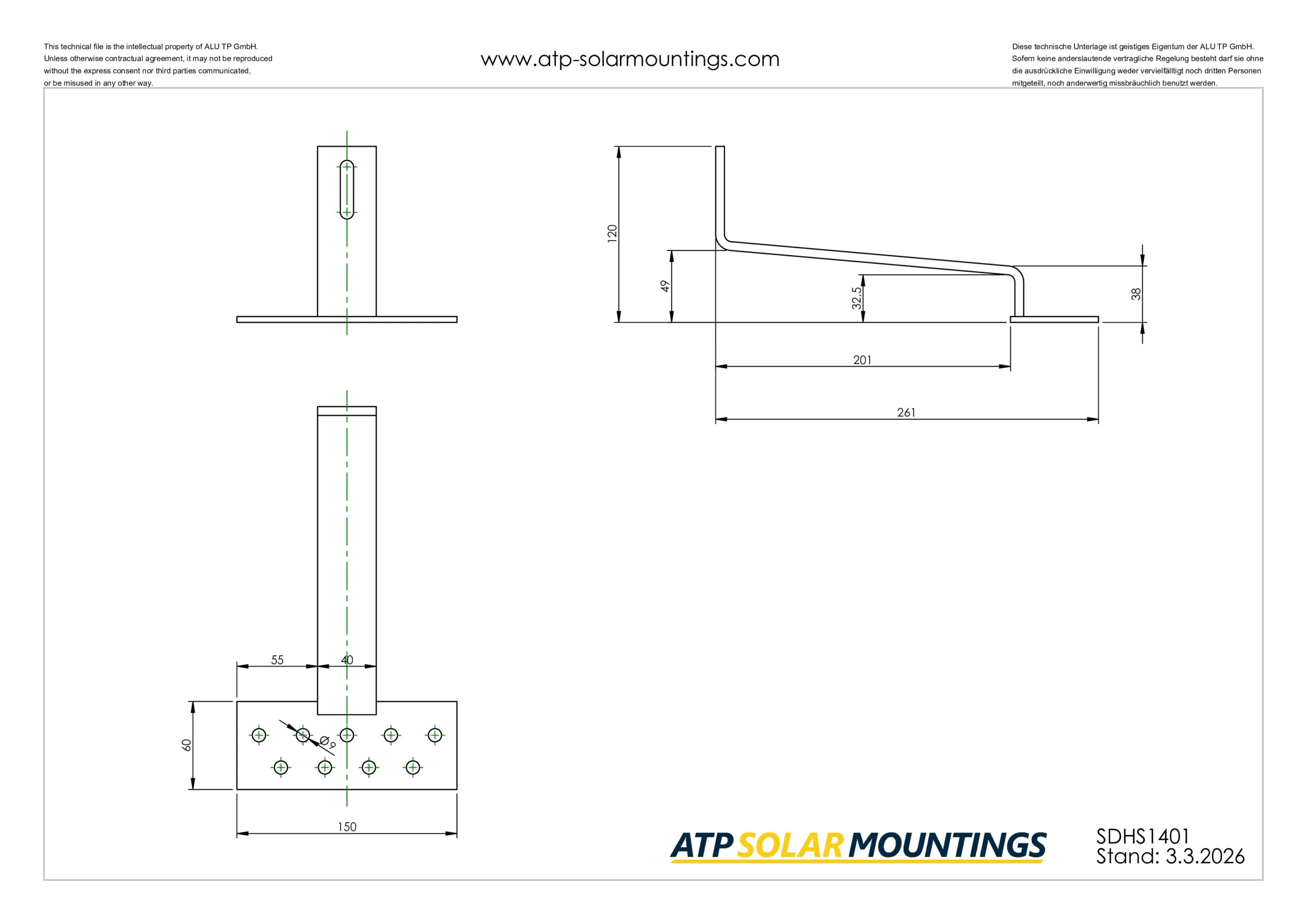

Base Plate: 150x60x4 mm Total Height: 120 mm Height under Bracket: 32,5 mm Bracket: 40x6 mm Bracket Height: 87,5 mm Bracket Length: 195 mm
EigenschaftenStainless steel roof hook for plain tile roofing, connection at the front with Clamping Plate Secure, height adjustment through slotted hole approx. 30 mm.
