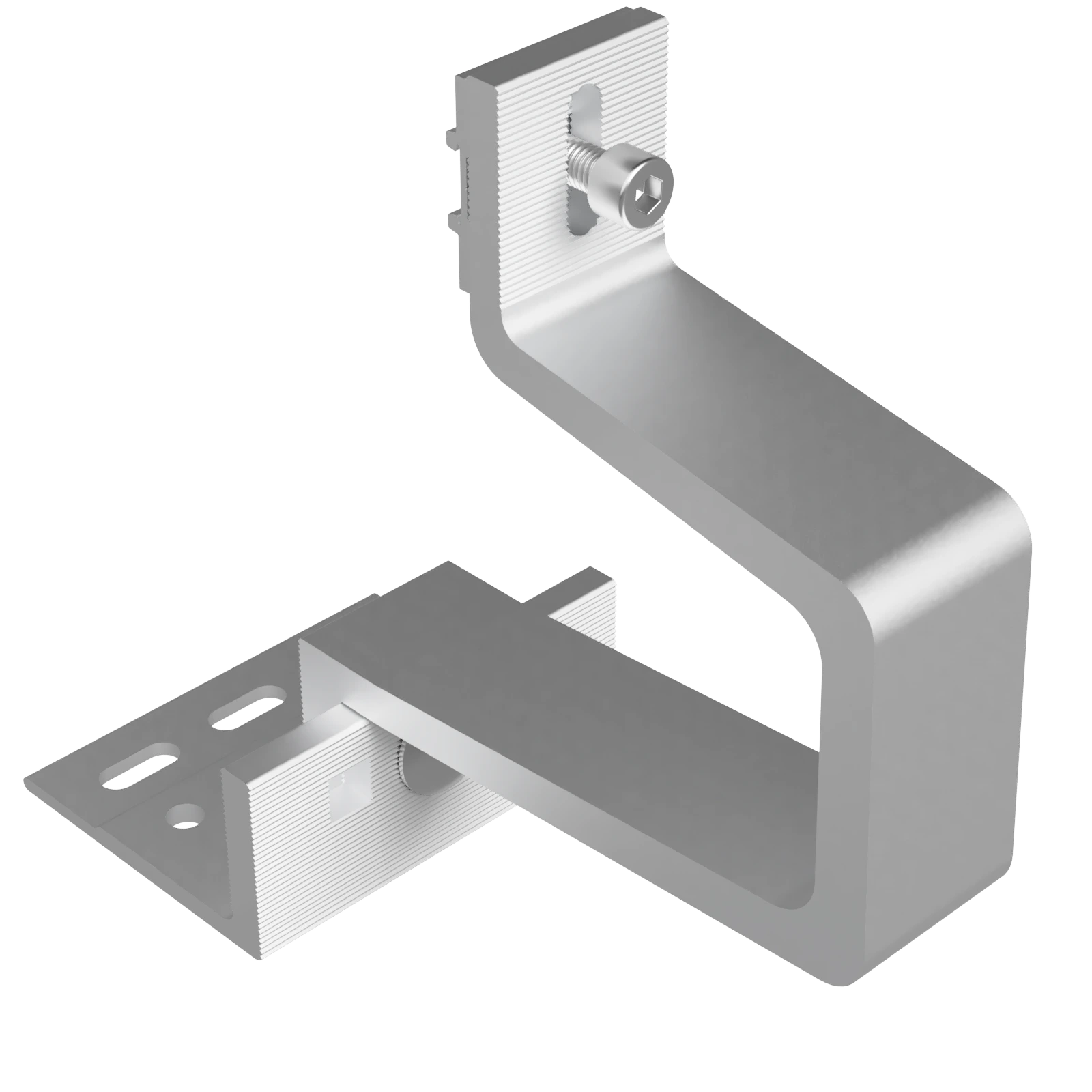

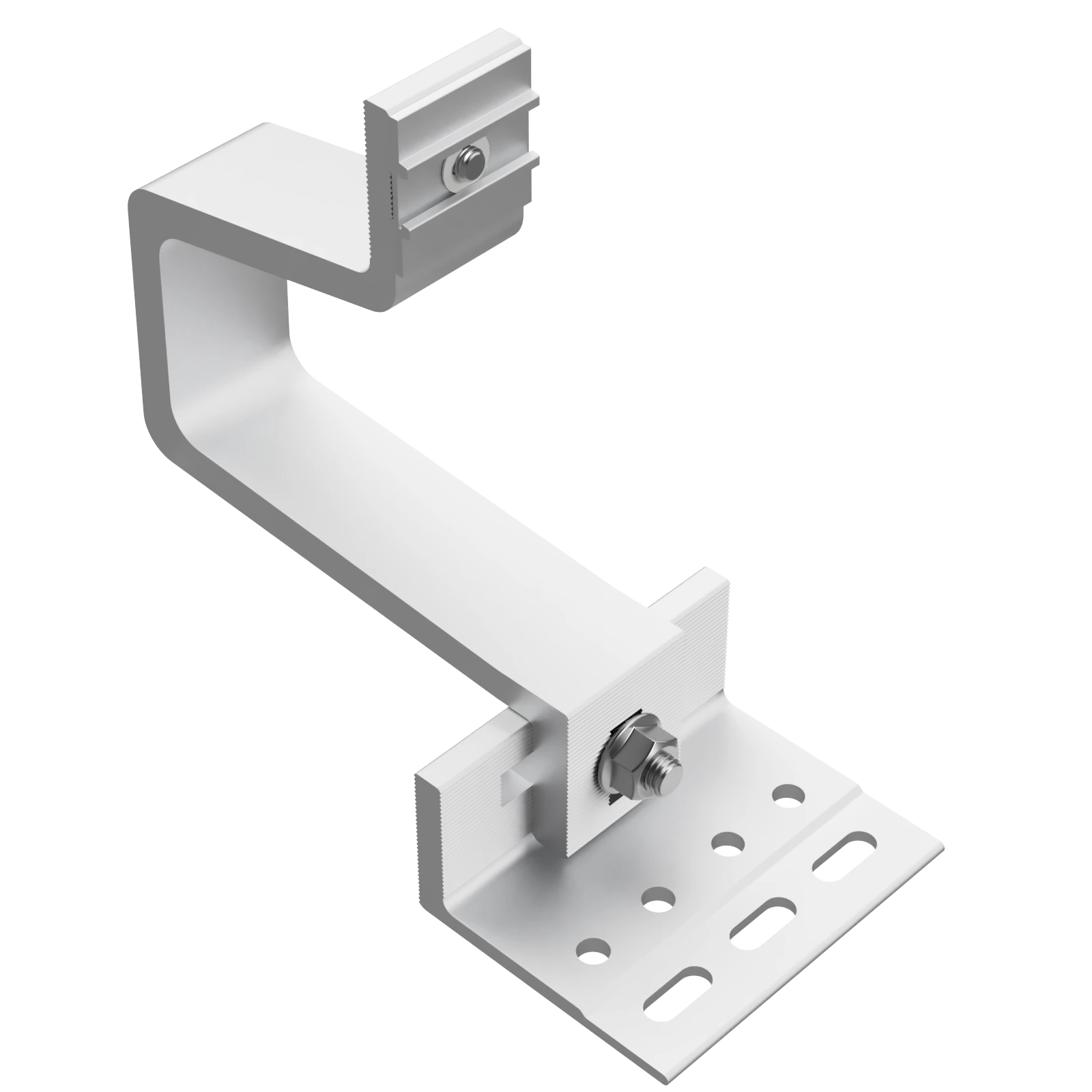

Aluminium Roof Hook SM30 KP
SDHA1514
Produktbeschreibung

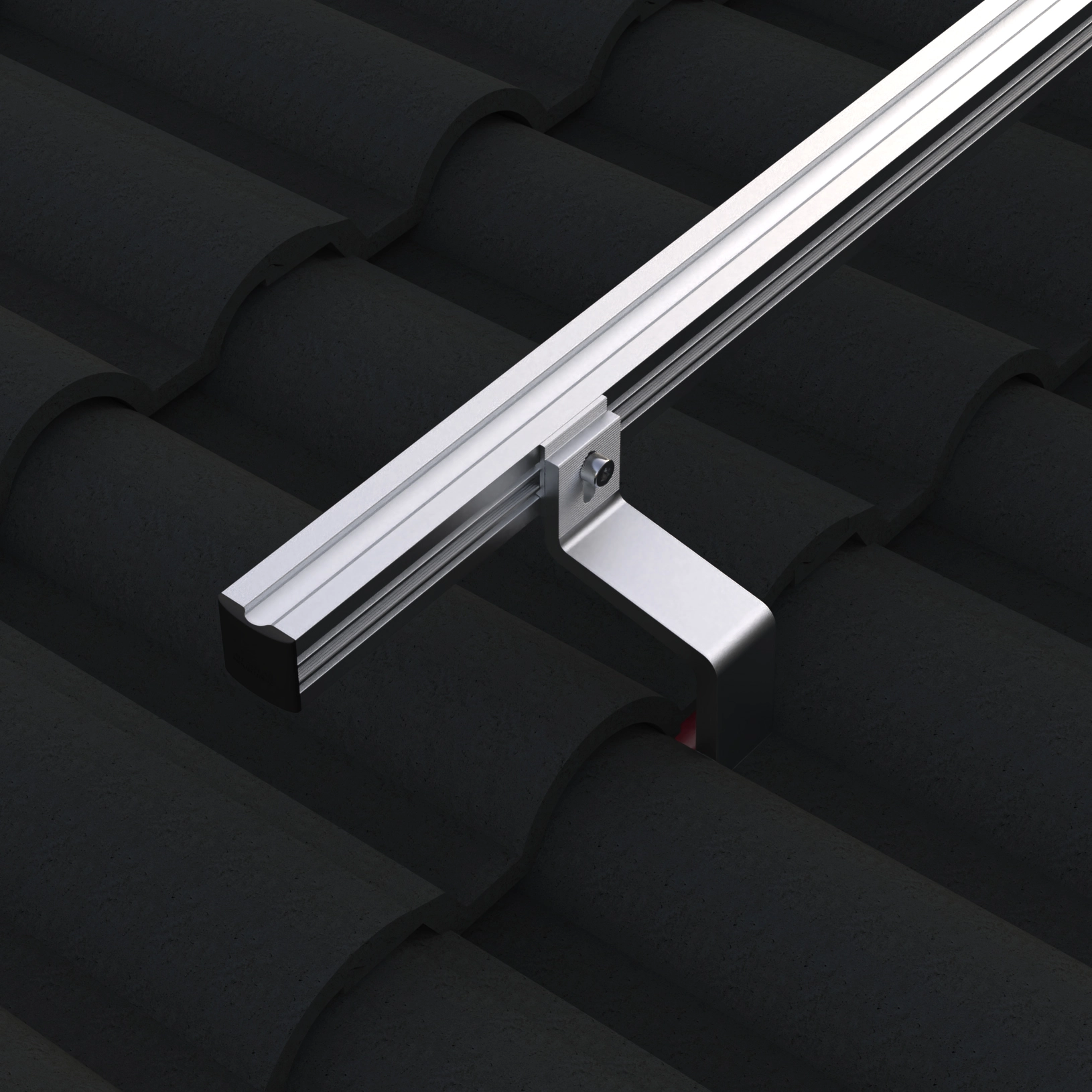

Aluminum roof hook with pre-fixed clamping plate for front mounting of mounting rails. Suitable for areas of higher wind- and snow loads.
Technische Angaben
Montagesystem Pitched Roof, Pantile Roofing
Material ALU EN AW 6063, A2 Stainless Steel
OberflächeMill Finish
Anpassbaryes
Leisten30
Verkaufseinheit1
Dimensionen
Base Plate: 100 x 80 mm | Total Height: 194 – 203 mm | Height under Bracket: 45 – 54 mm | Bracket: 40 x 10 mm
EigenschaftenWith 3-stage lateral adjustment and 28 mm height positioning of the mounting rail. Height-adjustable for large roof battens up to 54 mm high. The clamping plate and screw for fastening the mounting rails are pre-fixed.
